IVPC3000 Model
Sterling Computer Sales is offering small ultra thin embedded vehicle pc computer solution for your business. These units are fanless ultra slim in-vehicle pc computers. The ultra slim design is ideal for a computing solution for in-vehicle system integration.
- Rugged fanless design
- Integrated Intel 3rd generation Core i ULV processors with HM76 chipset
- Support CAN 2.0A/2.0B protocol and i-Button for driver ID
- VGA/HDMI output with combo connector for touch monitor installation
| CPU: |
Intel Core i7 3517UE Intel Core i3 3217UE Intel Celeron 1047UE |
| Chipset: | Intel HM76 |
| Memory: | 2 x 204-pin DDR3-1333 SO-DIMM, 2GB pre-installed, up to 16GB |
| Graphic Controller: | Integrated in Processors |
| Video Interface: |
Graphic Controller: 2 x HDMI type A connector Video Interface: 1 x dedicated combo connector (VGA/USB/audio/power) Video Memory: DVMT |
| Storage: |
Sata: 1 x SATA III port with power connector CF: 1 x Compact Flash Type I/II slot support UDMA 33 Disk Bay: 1 x swappable 2.5" HDD bay with Anti-vibration / Anti-shock solution |
| Communication: |

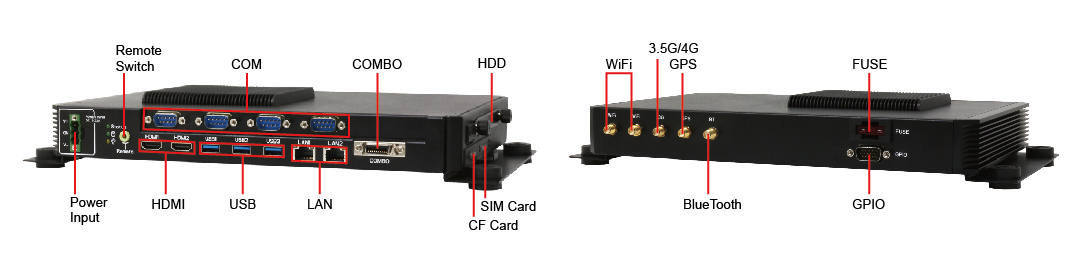

Ethernet: 2 x Intel GbE chip via RJ-45 connector USB: 3 x USB 3.0 connector & 2 x JST pin header Serial: 3 x RS232, 1 x 422/485 (Select By GPIO) |
| Expansion: |
2 x Mini PCIe (For Optional 3.5G / Wifi module only) GIPO: 8-bit GPIO (4 In, 4 Out) Antenna: 1 x SMA for GPS, 1 x SMA for 3.5G, 2 x SMA for WiFi, 1 x SMA for Bluetooth SIM Slot x 1, SIM card changeable without opening case Security: Support I-Button for driver ID CAN BUS: Support CAN 2.0A/2.0B protocol |
| Other Features: |
Audio Codec: (Line-out & MIC) Hardware Monitoring: CPU voltage and temperature Watchdog Timer: 1~255 sec. software programmable Indicators: Power / HDD/ Status LED |
| Power Requirement: |
Input Power: 9~32 V (+/-5%) single voltage input, 3 poles terminal block Output Voltage: 12V DC, 120W |
| Software Support: |
Windows 7(32/64 bit) Windows Embedded(32 bit) Fedora 17(32/64 bit) Ubuntu 12.10(32/64 bit) |
| Mechanical Á Environmental: |
Fanless Thermal Design Chassis: Sheet metal Vibration: IEC 60068-2-64, 5~500Hz, 3GRMS(CF/SSD), Operating with SSD Shock: IEC 60068-2-27, 50G 500m/s2 11MS, Operating with SSD Dimension: 290mm x 190mm x 35mm Weight: 3 kg Operating Temp.: 0~60°C (-4~140°F) Storage Temp.: -40~80°C (-40~176°F) Relative Humidity: 0~90% @ 40°C, non-condensing Saftey: CE, FCC class B , E-Mark |
| Smart In-Vehicle Power Management: |
O/S Anti-Crash: Smart O/S boot/shut-down control by power subsystem System Boot: Delay time from 0 seconds to 60 minutes setting in BIOS System Boot Fail: 3 times boot fail retry Power on/off: System power switch by remote cable switch Power on/off switch: System power input serial connection to car battery and ignition switch Car Battery: Low battery voltage monitoring and configurable auto shutdown low battery voltage level |
| Product Materials: |
1 x Quick Guide 1 x User Guide & System Driver CD 1 x Screw pack(2.5”HDD bracket: 4pcs) 1 x Terminal block female 3pin(for power input) 1 x Spare Fuse 10A 1 x GPIO/CAN/Driver ID DB15 Cable 1 x Remote Switch Cable 1 x One to Many Combo Cable(Combo to VGA/USB/Audio/DC Cable) |
Descripton:
Sterling Computer Sales is offering small ultra thin embedded vehicle pc computer solution for your business. These units are fanless ultra slim in-vehicle pc computers. The ultra slim design is ideal for a computing solution for in-vehicle system integration.
Images:

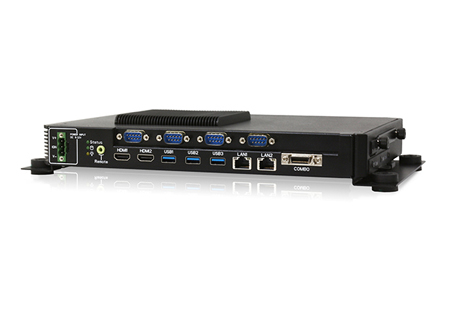

Main Image

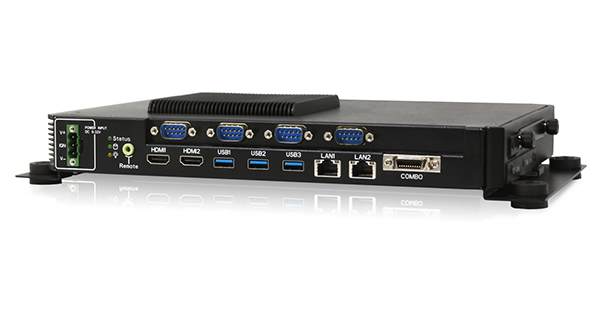

Detail Image
Download:
Coming Soon!
