IVPC2500 Model




    IVPC2500 Model

    Sterling Computer Sales is offering small ultra thin embedded vehicle pc computer solution for your business. These units are fanless ultra slim in-vehicle pc computers. The ultra slim design is ideal for a computing solution for in-vehicle system integration.

    • Rugged fanless design
    • Integrated Intel 3rd generation Core i ULV processors with HM76 chipset
    • Support CAN 2.0A/2.0B protocol and i-Button for driver ID
    • VGA/HDMI output with combo connector for touch monitor installation
    Request Quote Custom Build Request

    Specifications:
    CPU:

    Intel Core i7 3720QM

    Intel Core i5 3360M

    Intel Core i5 3610ME

    Intel Core i3 3120ME
    Chipset: Intel HM76
    Memory: 2 x 204-pin DDR3-1333 SO-DIMM, 2GB pre-installed, up to 16GB
    Graphic Controller: Integrated within HM76
    Video Interface:

    Graphic Controller: 1 x HDMI type A connector

    Video Interface: 1 x DVI-D connector

    Video Interface: 1 x dedicated combo connector (VGA/USB/audio/power)

    Video Memory: DVMT
    Storage:

    Sata: 2 x SATA III port with power connector

    CF: 1 x Compact Flash Type I/II slot support UDMA 33

    Disk Bay: 1 x swappable 2.5" HDD bay with Anti-vibration / Anti-shock solution
    Communication:

    Ethernet: 2 x Intel GbE chip via RJ-45 connector

    USB: 4 x USB 3.0 connector & 2 x JST pin header

    Serial: 2 x RS232 (1 x DB9, 1 x pin header), 1 x RS232/422/485 (DB9, switch selectable)
    Expansion:

    2 x Mini PCIe (For Optional 3.5G / Wifi module only)

    GIPO: 8-bit GPIO (4 In, 4 Out)

    Antenna: 1 x SMA for GPS, 1 x SMA for 3.5G, 2 x SMA for WiFi, 1 x SMA for Bluetooth

    SIM Slot x 1, SIM card changeable without opening case

    Security: Support I-Button for driver ID

    CAN BUS: Support CAN 2.0A/2.0B protocol
    Other Features:

    Audio Codec: (Line-out & MIC)

    Hardware Monitoring: CPU voltage and temperature

    Watchdog Timer: 1~255 sec. software programmable

    Indicators: Power / HDD/ Status LED
    Power Requirement:

    Input Power: 9~32 V (+/-5%) single voltage input, 3 poles terminal block

    Power Consumption: Max 80W (i7 CPU)
    Software Support:

    Windows XP

    Windows 7

    Fedora 14

    Ubuntu 10
    Mechanical Á Environmental:

    Fanless Thermal Design

    Chassis: SECC + Aluminum heatsink

    Vibration: IEC 60068-2-64, 5~500Hz, 3GRMS(CF/SSD), Operating with SSD

    Shock: IEC 60068-2-27, 50G 500m/s2 11MS, Operating with SSD

    Dimension: 310mm x 195mm x 80mm

    Weight: 6 kg

    Operating Temp.: 0~60°C (-4~140°F)

    Storage Temp.: -40~80°C (-40~176°F)

    Relative Humidity: 0~90% @ 40°C, non-condensing

    Saftey: CE, FCC class B , E-Mark
    Smart In-Vehicle Power Management:

    O/S Anti-Crash: Smart O/S boot/shut-down control by power subsystem

    System Boot: Delay time from 0 seconds to 60 minutes setting in BIOS

    System Boot Fail: 3 times boot fail retry

    Power on/off: System power switch by remote cable switch

    Power on/off switch: System power input serial connection to car battery and ignition switch

    Car Battery: Low battery voltage monitoring and configurable auto shutdown low battery voltage level
    Product Materials:

    1 x User Guide & System Driver CD

    2 x Wall Mount Bracket

    1 x Screw pack(2.5”HDD bracket: 4pcs)

    1 x Terminal block female 3pin(for power input)

    1 x Spare Fuse 10A

    1 x GPIO/CAN/Driver ID DB15 Cable

    1 x Remote Switch Cable

    1 x One to Many Combo Cable(Combo to VGA/USB/Audio/DC Cable)
    Descripton:

    Sterling Computer Sales is offering a fanless in vehicle computer featuring an Intel Core i7 cpu technology. The design of this unit includes smart power management, high efficient thermal module, and diversity of integrated communication technology such as CAN bus, Wi-Fi, 3.5G wireless WAN, Bluetooth and GPS. The slim design is ideal for a computing solution for in-vehicle system integration.

    Images:

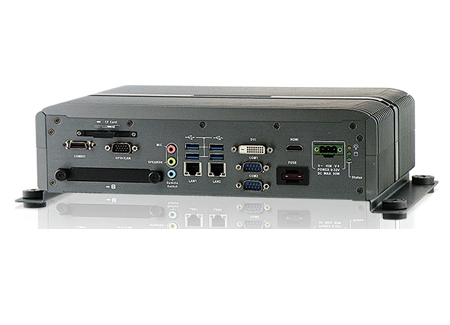

    Main Image

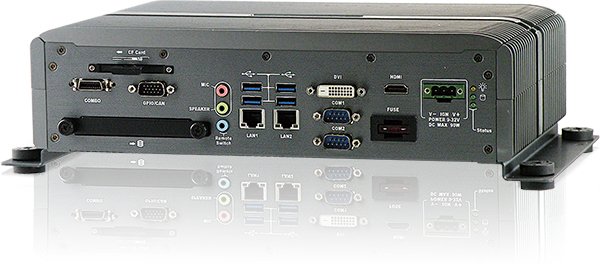

    Detail Image
    Download:

    Coming Soon!
