IVPC2000 Model
Sterling Computer Sales is offering a embedded vehicle pc computer solution for your business. These units are fanless slim in-vehicle pc computers. The slim design is ideal for a computing solution for in-vehicle system integration.
- Rugged fanless design
- Support Intel 2nd generation Core i processors with HM65 chipset
- Support CAN 2.0A/2.0B protocol and i-Button for driver ID
- VGA/HDMI/DVI-D output
| CPU: |
Intel Core i7 2710QE Intel Core i5 2510E Intel Celeron B810 |
| Chipset: | Intel HM65 |
| Memory: | 2 x 204-pin DDR3-1333 SO-DIMM, 2GB pre-installed, up to 8GB |
| Graphic Controller: | Integrated in Processors |
| Video Interface: |
Graphic Controller: 1 x HDMI type A connector Video Interface: 1 x DVI-D connector Video Interface: 1 x dedicated combo connector (VGA/USB/audio/power) Video Memory: DVMT |
| Storage: |
Sata: 2 x SATA III port with power connector CF: 1 x Compact Flash Type I/II slot support UDMA 33 Disk Bay: 1 x swappable 2.5" HDD bay with Anti-vibration / Anti-shock solution |
| Expansion: |
2 x Mini PCIe (For Optional 3.5G / Wifi module only) Ethernet: 2x Intel GbE chip via RJ-45 connector USB: 4 x USB 2.0 Serial Port: 1x RS232, 1 x RS232/422/485 (DB9, switch selectable) GIPO: 8-bit GPIO (4 In, 4 Out) Antenna: 1 x SMA for GPS, 1 x SMA for 3.5G, 2 x SMA for WiFi, 1 x SMA for Bluetooth SIM Slot x 1, SIM card changeable without opening case Security: Support I-Button for driver ID CAN BUS: Support CAN 2.0A/2.0B protocol |
| Other Features: |
Audio Codec: (Line-out & MIC) Hardware Monitoring: CPU voltage and temperature Watchdog Timer: 1~255 sec. software programmable Indicators: Power / HDD/ Status LED |
| Power Requirement: |
Input Power: 9~32 V (+/-5%) single voltage input, 3 poles terminal block Power Consumption: Max 80W (i7 CPU) |
| Software Support: |
Windows XP Windows 7 Fedora 14 Ubuntu 10 |
| Mechanical Á Environmental: |
Fanless Thermal Design Chassis: SECC + Aluminum heatsink Vibration: IEC 60068-2-64, 5~500Hz, 3GRMS(CF/SSD), Operating with SSD Shock: IEC 60068-2-27, 50G 11MS, Operating with SSD Dimension: 310mm x 195mm x 80mm Weight: 6 kg Operating Temp.: -20~60°C (-4~140°F) Storage Temp.: -40~80°C (-40~176°F) Relative Humidity: 0~90% @ 40°C, non-condensing Saftey: CE, FCC class B , E-Mark, ISO 7637-2 |
| Smart In-Vehicle Power Management: |
O/S Anti-Crash: Smart O/S boot/shut-down control by power subsystem System Boot: Delay time from 0 seconds to 60 minutes setting in BIOS System Boot Fail: 3 times boot fail retry Power on/off: System power switch by remote cable switch Power on/off switch: System power input serial connection to car battery and ignition switch Car Battery: Low battery voltage monitoring and configurable auto shutdown low battery voltage level |
| Product Materials: |
1 x User Guide & System Driver CD 1 x Screw pack(2.5”HDD bracket: 4pcs) 1 x Terminal block female 3pin x1 1 x Spare Fuse 10A 1 x SATA Á SATA power cable 1 x Remote Switch Cable 1 x GPIO/CAN/Driver ID DB15 Cable |
Descripton:
Sterling Computer Sales is offering an embedded vehicle pc computer solution for your business. This fanless in vehicle computer features the intel core i7 technology. This unit offers smart power management, high efficient thermal module, and diversity of integrated communication technology such as CAN bus, Wi-Fi, 3.5G wireless WAN, Bluetooth and GPS.
Images:

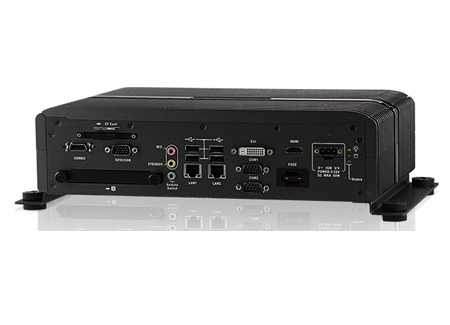

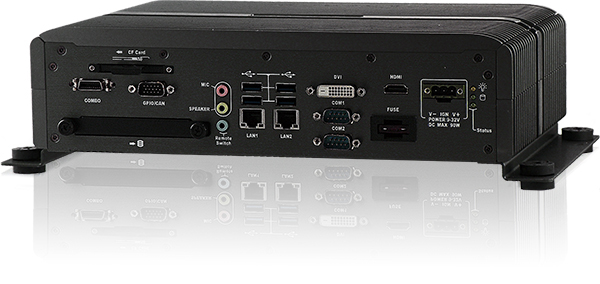

Main Image

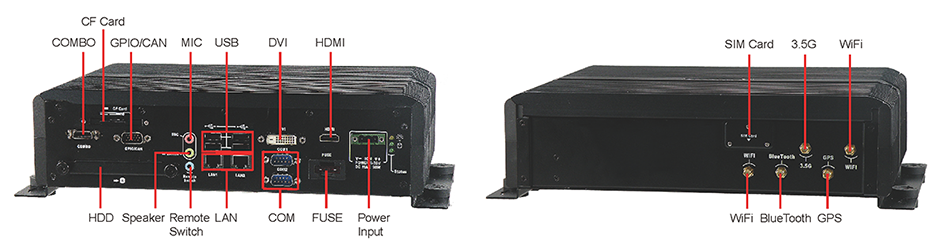

Detail Image
Download:
Coming Soon!
