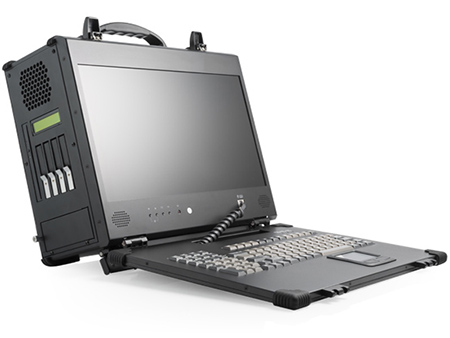

Commander-AT8 Model
The Commander-AT8 is a Battery Powered Portable pc computer offering 4 full length expansion slots utilizing a micro-atx motherboard. The keyboard folds in front of the display and also has an integrated touch pad on a rugged portable chassis.
- Chassis: Standard Micro-ATX Motherboard
- Slots: 4 Full length Slots
- Ports: Serial Port Available with older O.S. installations
- Drive Bays: (4) x 2.5" Removable
- Dimensions: 16.46" x 14.05" x 6.96"
| Motherboard: | Standard Micro-ATX |
| Slots: | 4 full length slots |
| Drive Bay: | (4) x 2.5" Removable |
| LCD Display: |
17.3” FHD LCD, 1920x1080, 300 nits brightness Upgradable options: 1000 nits, UHD 3840x2160, 60Hz Display, 2K, 144Hz displays Projected capacitive or resistive touchscreen option |
| Video: | Integrated HD graphic controller or application-specific graphic controller |
| Processors: | Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7 |
| Keyboard/Mouse: | 108 keys, multi-languages/touchpad, RJ45 connector |
| Case Size: | 16.46" x 14.05" x 6.96" Inches |
| Battery or Power Supply: |
220W External AC-DC Adapter 4 x 81W batteries Charging Voltage: 12.6 ± 0.3V, Charging Current: 4.7 ± 0.2A Input Voltage: 19V, Operating Temperature : 0~45° |
| Case Weight: | 18.7 lbs |
| Carrying Case: | Padded carrying case with wheels |
| Case: | Aluminum alloy chassis |
| Option: | Hard Shell Shipping Case |
| Oper. Temp. | 0°C - 60°C (32°F~140°F) |
| Storage Temp. | -20°C ~ 80°C (-68°F~176°F) |
| Relative Humidity: | 10 - 90% (non-condensing) |
| Shock (operating, all axes): | 15g |
| Vibration (operating, all axes): | 10-500Hz (0.4 Grms) |
| Compliance: | CE, FCC, CCC |
Descripton:
The Commander-AT8 offers a standard micro-atx motherboard offering 4 expansion slots that are full length for your proprietary cards. The highly mobile laptop style unit boasts battery capacity that offers 4x Li-ion 81Whr battery packs for field use.
The Commander-AT8 integrates 4 high capacity Li-ion 81Whr battery packs into the system. The smart battery system is light in weight and the battery are hot swappable to allow continuous replenishing of power. The system can operate in a both battery power and AC power simultaneously or independently. The Commander-AT8 can operate for 4+ hour when fully charged and recharging the battery will take half the time. You can charge and operate the unit at the same time during operation seamlessly.
The unique size, expansion, battery portability and processing power included in the system offers you desktop speed in mobile computing chassis. No longer is a power outlet required, and no longer is a sacrifice between mobility and processing power be needed.
Images:
Internal Image
Download:
Coming Soon!
