Aztec-ATX3 Model

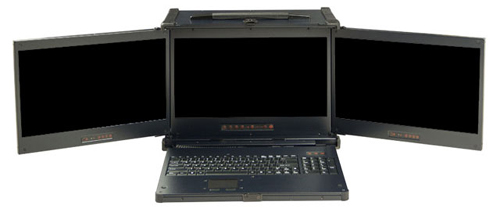

The Aztec-ATX3 lunchbox portable computer has a lightweight all aluminum case design. This unit offers three 17.1 inch 1920x1080 Widescreen HD displays.
- Chassis: Standard ATX Form Factor
- Slots: 7 Slots (4 full length)
- Drive Bays: (1) x 5 1/4 open, (1) x Slim DVDRW Drive, (2) 3.5" open
- Dimensions: 17.5" W x 13.5" H x 10.25" D
| Motherboard: | Standard ATX form factor |
| Slots: | 7 Slots (4 full length) |
| Drive Bay: | (1) x 5 1/4 open, (1) x Slim DVDRW Drive, (2) 3.5" open |
| LCD Display: |
(3) 17" 1920x1080 HD Widescreen Display Max Resolution of 5760 x 1080 = (3 x 1920x1080) 3 DVI or HDMI outputs for 3 screens. |
| Video: | Conversion Board: Analog-to-digital conversion board |
| Processors: | Latest Intel Processors |
| Keyboard/Mouse: | 108 keys, multi-languages/touchpad, USB connector |
| Case Size: | 17.5" W x 13.5" H x 10.25" D Inches |
| Power Supply: | PS/2 700 Watt Power Supply |
| Case Weight: | 33 lbs |
| Speakers: | Built-in amplified speaker |
| Carrying Case: | Padded carrying case with wheels |
| Stabilize Bar: | 1 piece |
| Cooling: | Air circulation fan with filter |
| Case: | All Aluminum Construction with shock absorbing rubber corners |
| Option: | Hard Shell Shipping Case, DC Power supply |
| Oper. Temp. | 0°C - 60°C |
| Relative Humidity: | 20% - 80% (non-condensing) |
| Shock (operating, all axes): | 15g |
| Vibration (operating, all axes): | 20-60Hz, 0.075mm |
| Compliance: | CE & FCC Class B Compliant, UL, cUL, CCIB |
Descripton:
The Aztec-ATX3 lunchbox portable computer has a lightweight all aluminum case design. The keyboard folds in front of the display and also has an integrated touch pad. This unit offers three 17.1 inch 1920x1080 Widescreen HD displays. It is able to hold multiple full length interface cards. This unit is designed to accommodate standard ATX motherboards and the latest intel processors.
Images:
Internal Image
