Apollo-A5 Model
The Apollo-A5 offers a three screen portable pc unit with a standard atx format setup with shock mounted rubber corners and utilizes (3) 17.3" 1920x1080 HD resolution LCD displays. This unit also has an option for (6) 17.3" 1920x1080 HD resolution LCD displays or (9) 17.3" 1920x1080 HD resolution LCD displays
- Display: (3, 6, 9) 17.3" 1920 x 1080 Triple Screen Displays
- Chassis: Standard ATX Form Factor
- Slots: 7 Full length Slots
- Drive Bays: (2) x 5 1/4 open, (1) 3.5" open, (1) x Slim DVDRW Drive
- Case Dimensions: 17.4"W x 15.3"H x 11.0"D Inches
| Motherboard: | Standard ATX form factor |
| Slots: | 7 full length slots |
| Drive Bay: |
(2) x 5 1/4 open, (1) 3.5" open, (1) x Slim DVDRW Drive |
| LCD Display: |
Standard (3) 17.3" 1920x1080 display 16.7M colors Optional (6) 17.3" 1920x1080 display 16.7M colors Optional (9) 17.3" 1920x1080 display 16.7M colors Max Resolution of 5760 x 1080 = (3 x 1920x1080) 3 DVI or HDMI outputs for 3 screens to work independently or span all three screens. |
| Video: | Conversion Board: Analog-to-digital conversion board |
| Processors: | Latest Intel Processors |
| Keyboard/Mouse: | 108 keys, multi-languages/touchpad, USB connector |
| Case Size: | 17.4"W x 15.3"H x 11.0"D Inches |
| Power Supply: | PS/2 700 Watt Power Supply |
| Case Weight: | 26 lbs |
| Speakers: | Built-in amplified speaker |
| Carrying Case: | Padded carrying case with wheels |
| Stabilize Bar: | 1 piece |
| Cooling: | 2 cooling fans |
| Case: | All Aluminum Construction with shock absorbing rubber corners |
| Option: | Hard Shell Shipping Case, DC Power supply |
| Oper. Temp. | 0°C - 50°C |
| Relative Humidity: | Meth 10% - 90% RH (non-condensing) |
| Shock (operating, all axes): | 10g |
| Vibration (operating, all axes): | 10-500Hz |
| Compliance: | FCC, CE, RoHS |
Descripton:
The Apollo-A5 is a three screen portable computer in a standard atx format mainboard setup offering 7 full length slots for your proprietary cards. This unit is built using heavy duty metal ideally suitable for field use plus industries such as gaming and video development applications. Every Apollo-A5 portable pc offers a standard (3) 17.3" 1920x1080 high resolution LCD displays and an optional (6) or (9) 17.3" 1920x1080 high resolution LCD displays. This unit has a dual system cooling side fans and easy access to its expansion ports for immediate system upgrade or maintenance. The Apollo-A5 with its extra-rugged construction to sustain bumps and impacted blows is the most cost-effective, durable and efficient portable solution for your needs.
Images:

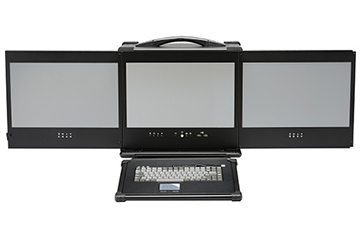

Standard Three Screen

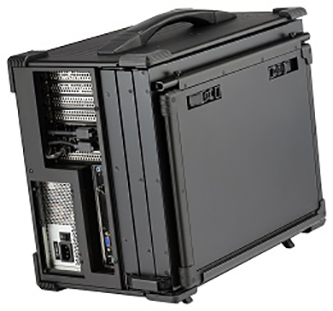

Left Side Image

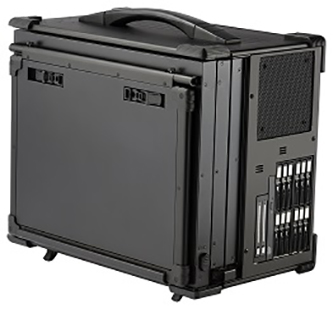

Right Side Image

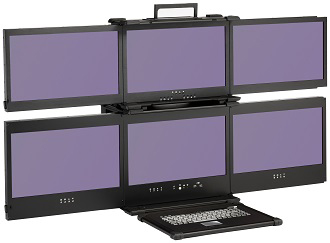

Optional: Six Screen Front

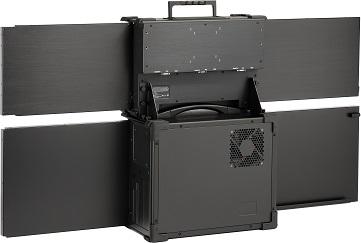

Optional: Six Screen Back

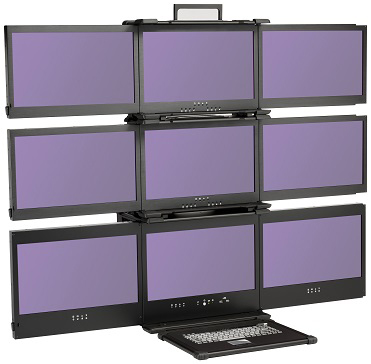

Optional: Nine Screen Front
