Apollo-A7 Model

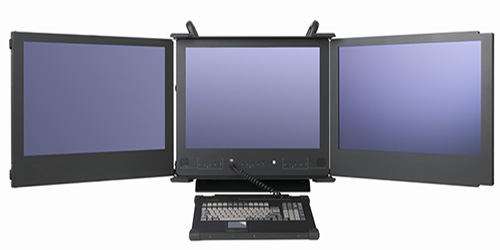

The Apollo-A7 is a three screen portable pc unit offering a standard atx format setup with shock mounted rubber corners and utilizes (3) 23" 1920x1080 HD resolution LCD displays

  • Chassis: Standard-ATX Form Factor
  • Slots: 7 Full length Slots
  • Drive Bays: (5) x 5 1/4 open, (1) x Slim DVDRW Drive, (1) 3.5" open
  • Case Dimensions: 23.3"W x 14.5"H x 11.75"D Inches
Request Quote Custom Build Request


Specifications:

Motherboard: Standard-ATX form factor
Slots: 7 full length slots
Drive Bay:

(5) x 5 1/4 open, (1) x Slim DVDRW Drive, (1) 3.5" open

LCD Display:

(3) 23.3" 1920x1080 display 16.7M colors"

Max Resolution of 5760 x 1080 = (3 x 1920x1080)

3 DVI or HDMI outputs for 3 screens to work independently or span all three screens.

Video: Conversion Board: Analog-to-digital conversion board
Processors: Latest Intel Processors
Keyboard/Mouse: 108 keys, multi-languages/touchpad, USB connector
Case Size: 17.1"W x 14.5"H x 11.75"D Inches
Power Supply: PS/2 700 Watt Power Supply
Case Weight: 30 lbs
Speakers: Built-in amplified speaker
Carrying Case: Padded carrying case with wheels
Stabilize Bar: 1 piece
Cooling: 2 cooling fans
Case: All Aluminum Construction with shock absorbing rubber corners
Option: Hard Shell Shipping Case, DC Power supply
Oper. Temp. 0°C - 50°C
Relative Humidity: Meth 10% - 90% RH (non-condensing)
Shock (operating, all axes): 10g
Vibration (operating, all axes): 10-500Hz
Compliance: FCC, CE, RoHS
Descripton:

The Apollo-A7 is a three screen portable computer in a standard-atx format mainboard setup offering 7 full length slots for your proprietary cards. This unit is built using heavy duty metal ideally suitable for field use plus industries such as gaming and video development applications. Every Apollo-A7 portable pc offers three high resolution 23" 1920x1080 resolution LCD displays, dual system cooling side fans and easy access to its expansion ports for immediate system upgrade or maintenance. The Apollo-A7 with its extra-rugged construction to sustain bumps and impacted blows is the most cost-effective, durable and efficient portable solution for your needs.

Images:


Closed Image


Right Side View


Left Side View
Download:

Download Datasheet
